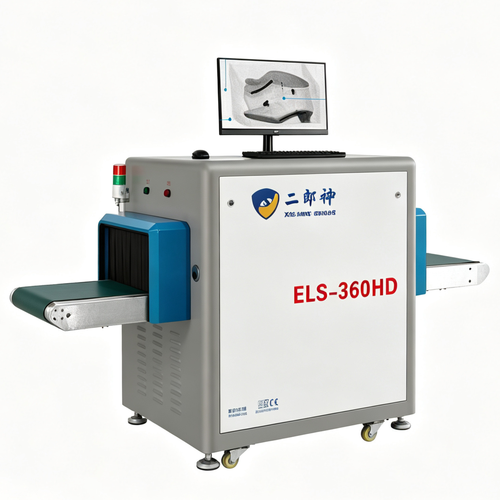

ELS‑360HD Industrial Intelligent X‑ray Inspection Machine
Independently developed by Dongguan Erlangshen Imaging Equipment Co., Ltd., the ELS‑360HD industrial intelligent X‑ray inspection machine is specially designed for footwear, luggage, apparel, toy and other industries. It detects hidden foreign objects inside finished products such as broken nails, broken needles, metal debris, stones and glass to eliminate potential safety hazards.
## Main Features
1. Equipped with an imported CMOS‑sensor high‑definition imaging system for intelligent identification, delivering sharp imaging for defect observation.
2. High detection sensitivity: capable of detecting metal balls as small as 0.8 mm in diameter.
3. High‑speed conveyor belt: maximum belt speed of 9 m/min, with a processing capacity of approximately 750 pieces per hour.
4. Large inspection channel: standard channel dimension 500 mm (W) × 230 mm (H); custom‑sized channels are available.
5. Excellent radiation‑safety performance: radiation leakage is far below international safety limits to ensure operator safety.
6. Intelligent image‑processing software. Optional image‑printing and barcode‑printing functions enable full product‑quality traceability.
7. Adopts original‑imported X‑ray tubes from the US and Japan, suitable for long‑hour continuous‑production operations.
Independently developed by Dongguan Erlangshen Imaging Equipment Co., Ltd., the ELS‑360HD industrial intelligent X‑ray inspection machine is specially designed for footwear, luggage, apparel, toy and other industries. It detects hidden foreign objects inside finished products such as broken nails, broken needles, metal debris, stones and glass to eliminate potential safety hazards.
## Main Features
1. Equipped with an imported CMOS‑sensor high‑definition imaging system for intelligent identification, delivering sharp imaging for defect observation.
2. High detection sensitivity: capable of detecting metal balls as small as 0.8 mm in diameter.
3. High‑speed conveyor belt: maximum belt speed of 9 m/min, with a processing capacity of approximately 750 pieces per hour.
4. Large inspection channel: standard channel dimension 500 mm (W) × 230 mm (H); custom‑sized channels are available.
5. Excellent radiation‑safety performance: radiation leakage is far below international safety limits to ensure operator safety.
6. Intelligent image‑processing software. Optional image‑printing and barcode‑printing functions enable full product‑quality traceability.
7. Adopts original‑imported X‑ray tubes from the US and Japan, suitable for long‑hour continuous‑production operations.
